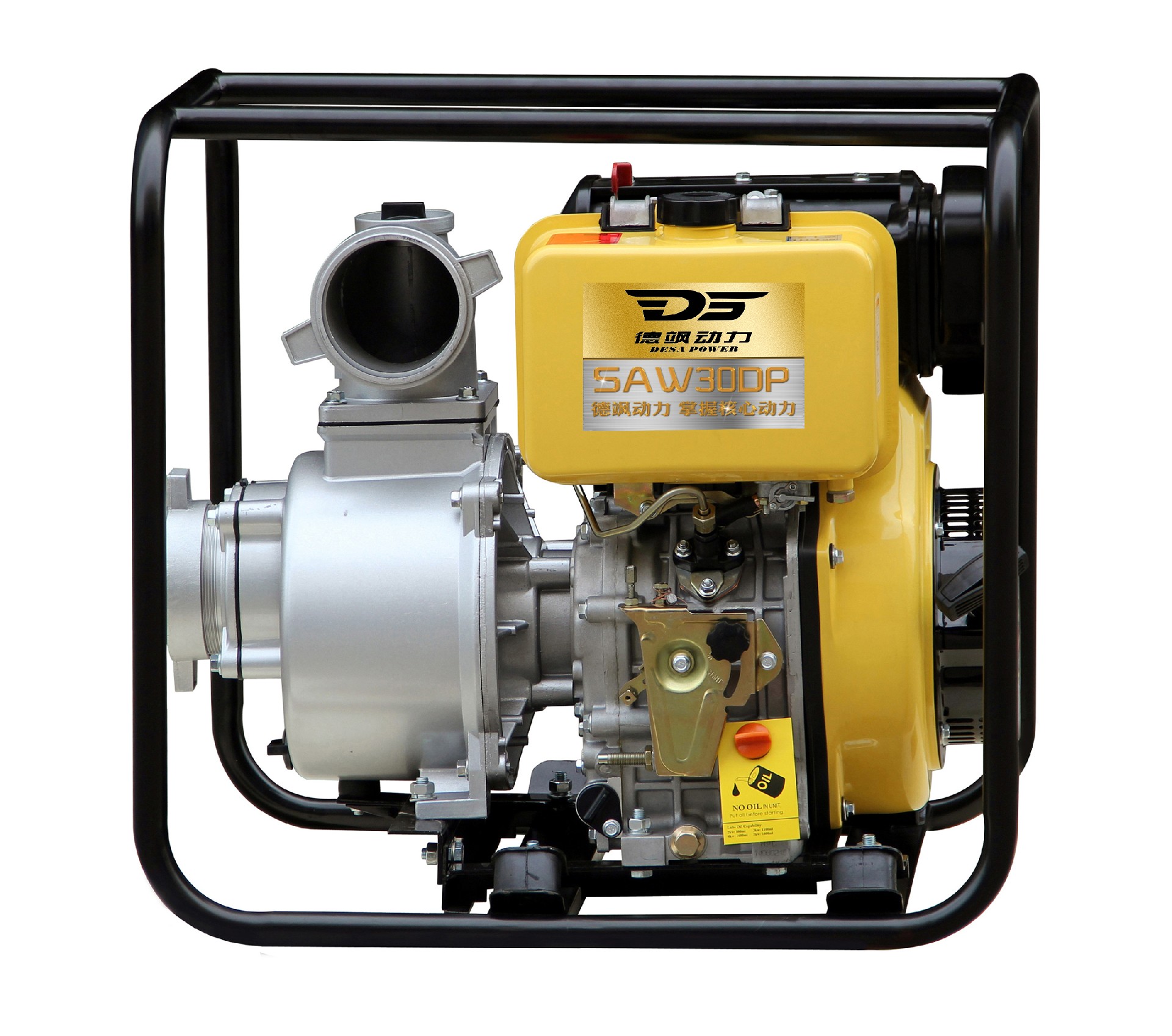

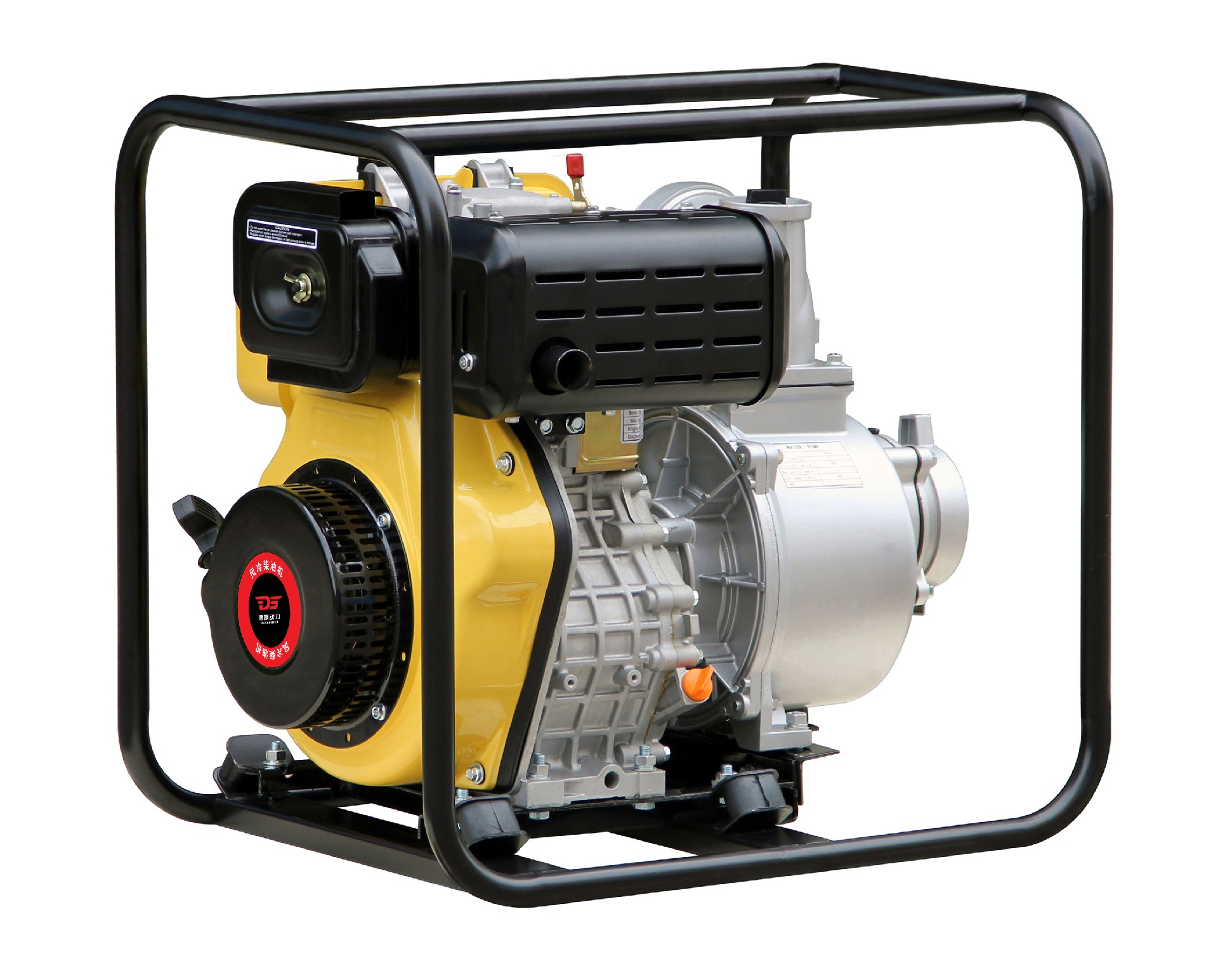

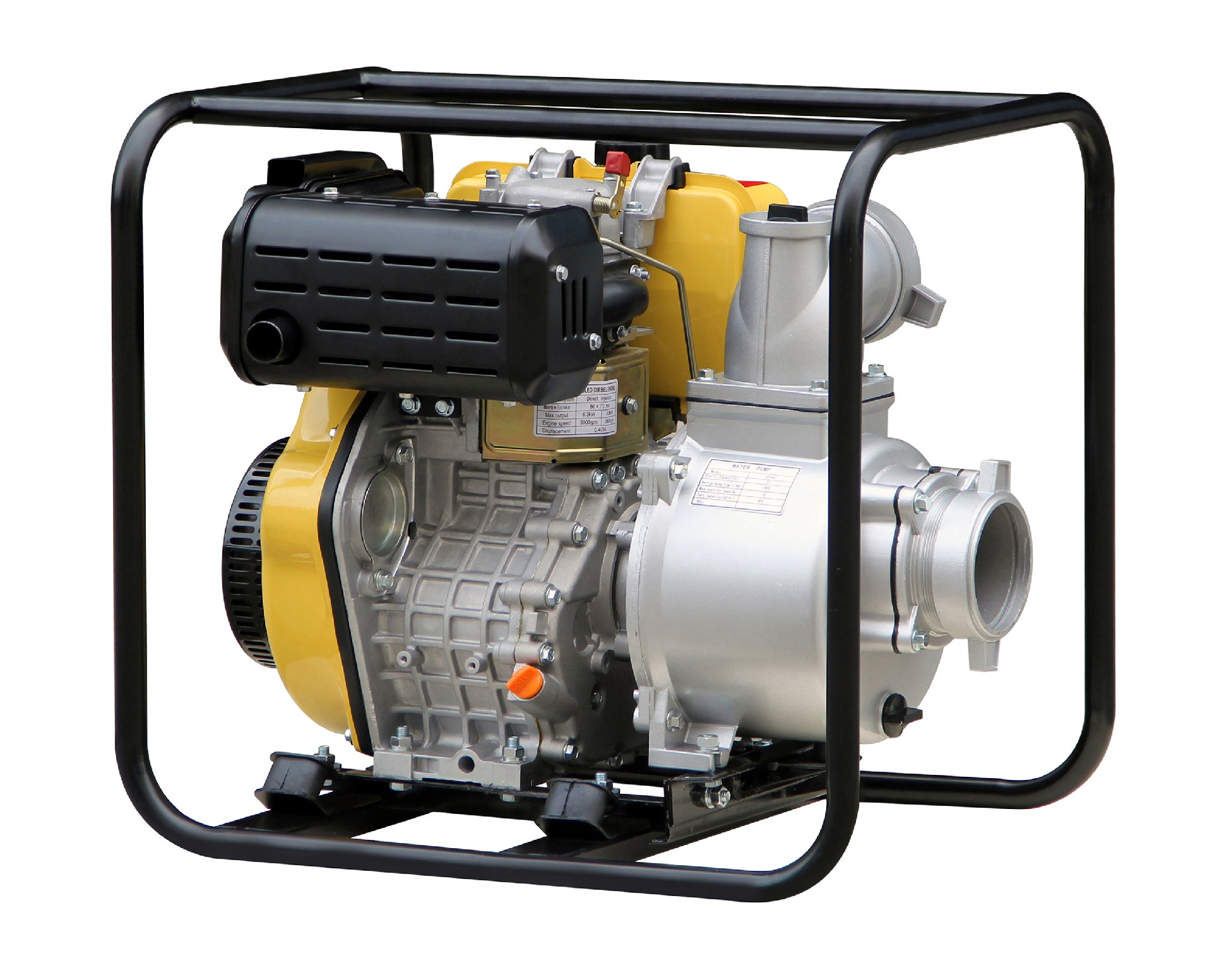

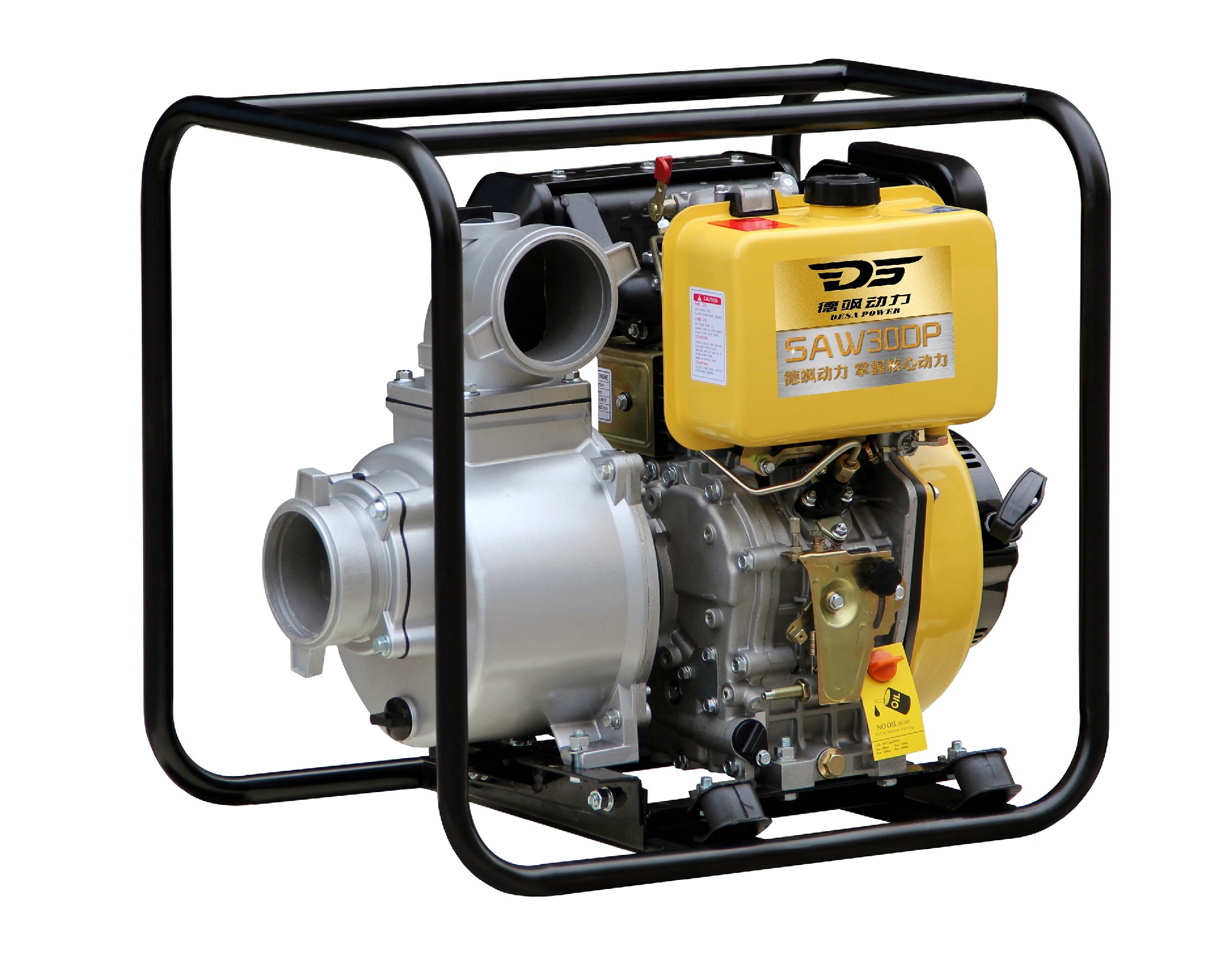

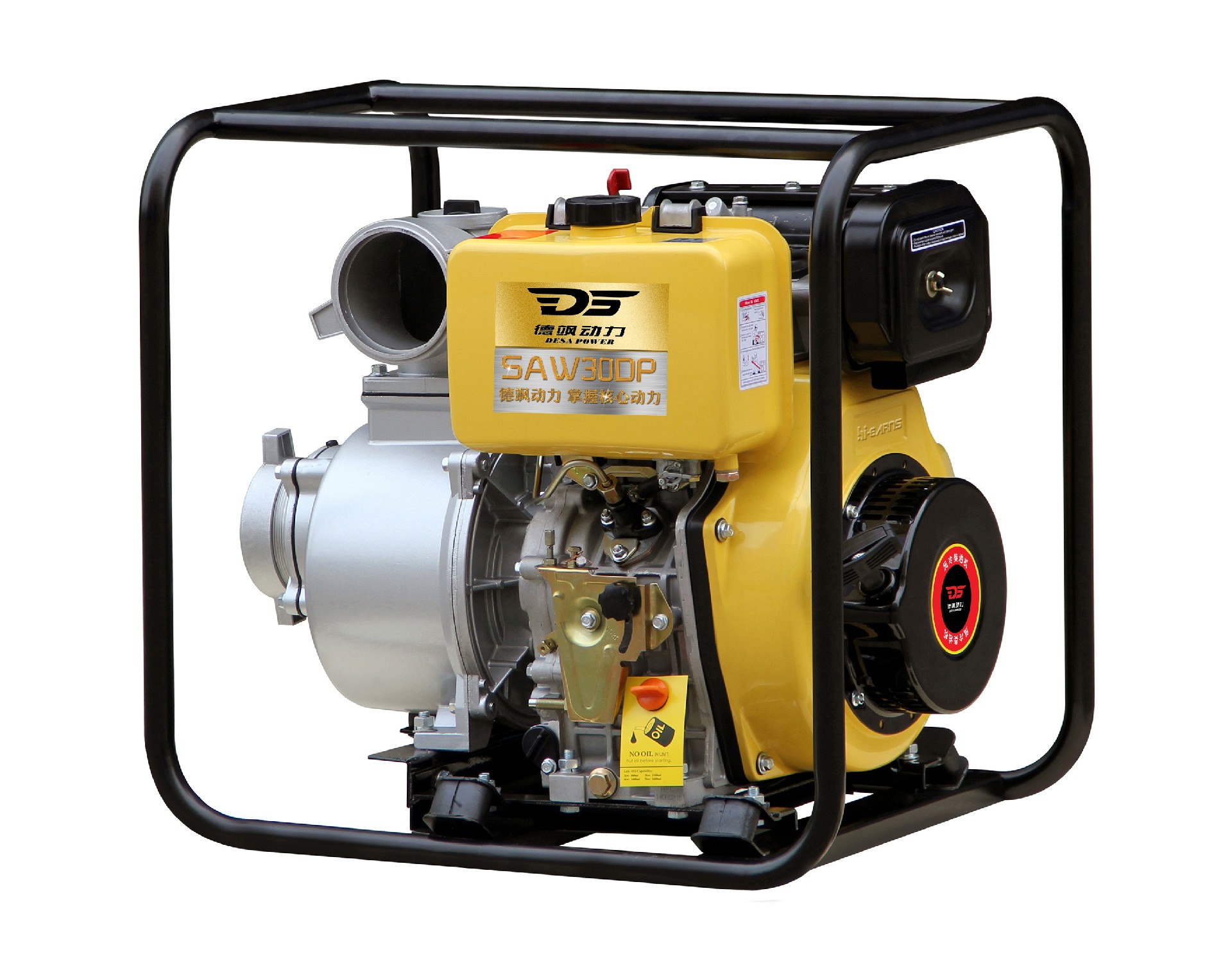

| Model | SAW30DP | |
| WATER PUMP | Suction,discharge port diameter[mm(in)] | 80(3') |
| Cont.head(m) | 28 | |
| Self-priming time(s/4m) | 120 | |
| Max suction head(m) | 8 | |
| Cont.capacity(m³/hr) | 50 | |
| ENGINE | Engine model | SAW178F |
| Speed(rpm) | 3600 | |
| Fuel consumption(g/kw.h) | 295 | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Displacement(cc) | 296 | |
| Bore*stroke(mm) | 78*62 | |
| Starting system | Recoil or Electric | |
| Fuel tank capacity(L) | 3.5 | |
| STANDARD FEATURES | Oil alert | yes |
| Connector of infall,Connecto of outfall | yes | |
| Filter | yes | |
| Seal ring | yes | |
| Hoop | yes | |
| DIMENSIONS | Dimension(L× W× H)(mm) | 570×475×580 |
| Net weight(kg) | 48 | |
| 20FT | 192 | |
