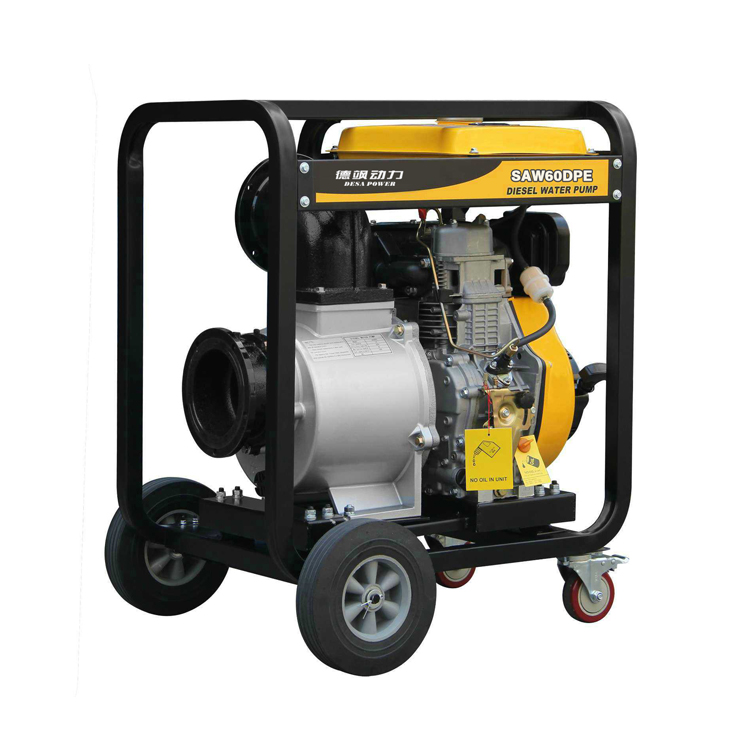

| Model | SAW60DPE | |
| WATER PUMP | Suction,discharge port diameter[mm(in)] | 150(6'), 150(6') |
| Cont.head(m) | 15 | |
| Self-priming time(s/4m) | 200 | |
| Max suction head(m) | 6 | |
| Cont.capacity(m³/hr) | 180 | |
| ENGINE | Engine model | SAW198FA |
| Speed(rpm) | 3200 | |
| Fuel consumption(g/kw.h) | 230 | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Displacement(cc) | 633 | |
| Bore*stroke(mm) | 98*84 | |
| Starting system | Electric | |
| Fuel tank capacity(L) | 23 | |
| STANDARD FEATURES | Oil alert | yes |
| Connector of infall,Connecto of outfall | yes | |
| Filter | yes | |
| Seal ring | yes | |
| Hoop | yes | |
| DIMENSIONS | Dimension(L× W× H)(mm) | 755×530×825 |
| Net weight(kg) | 147 | |
| 20FT | 56 | |
