Air-cooled Diesel Generator

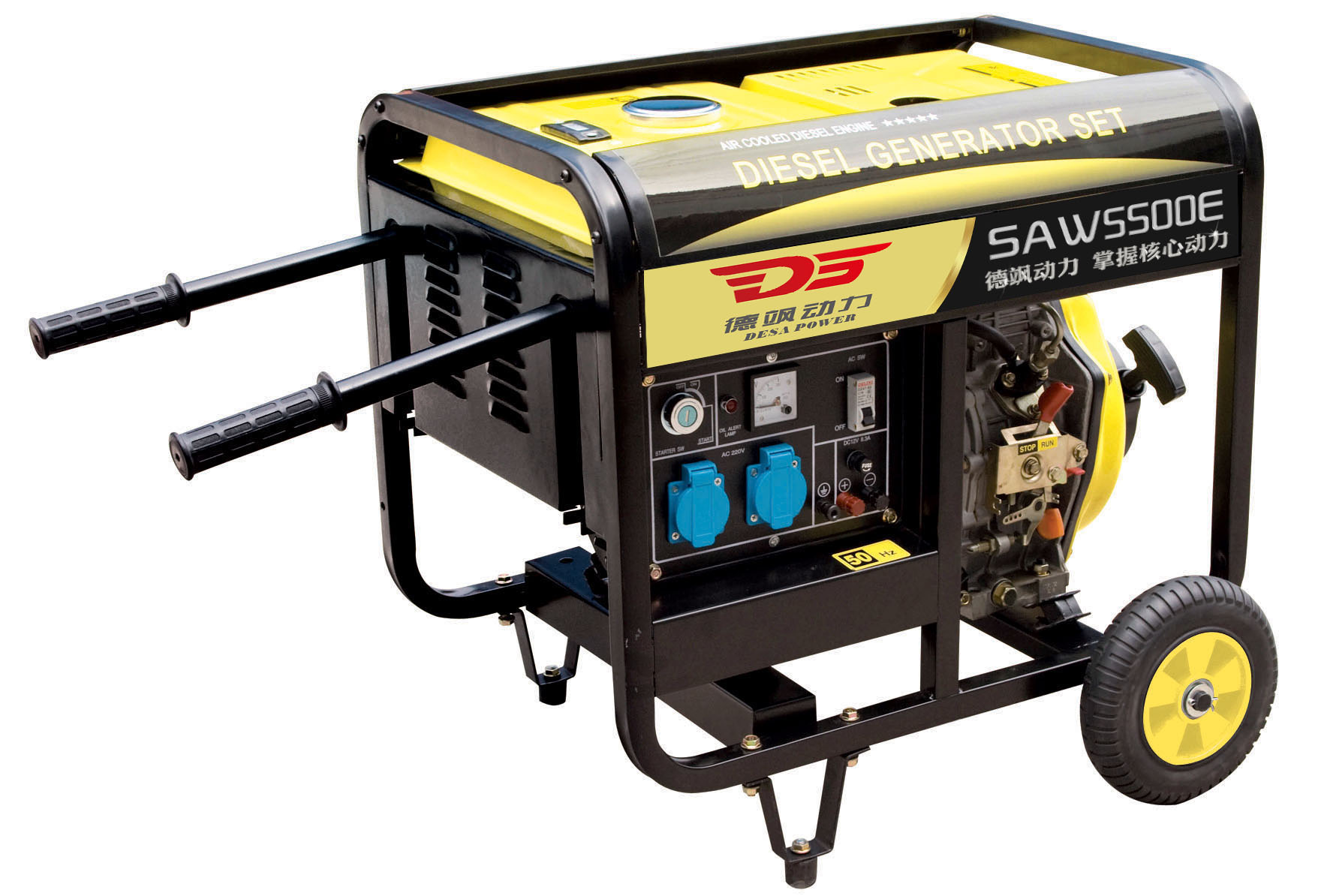

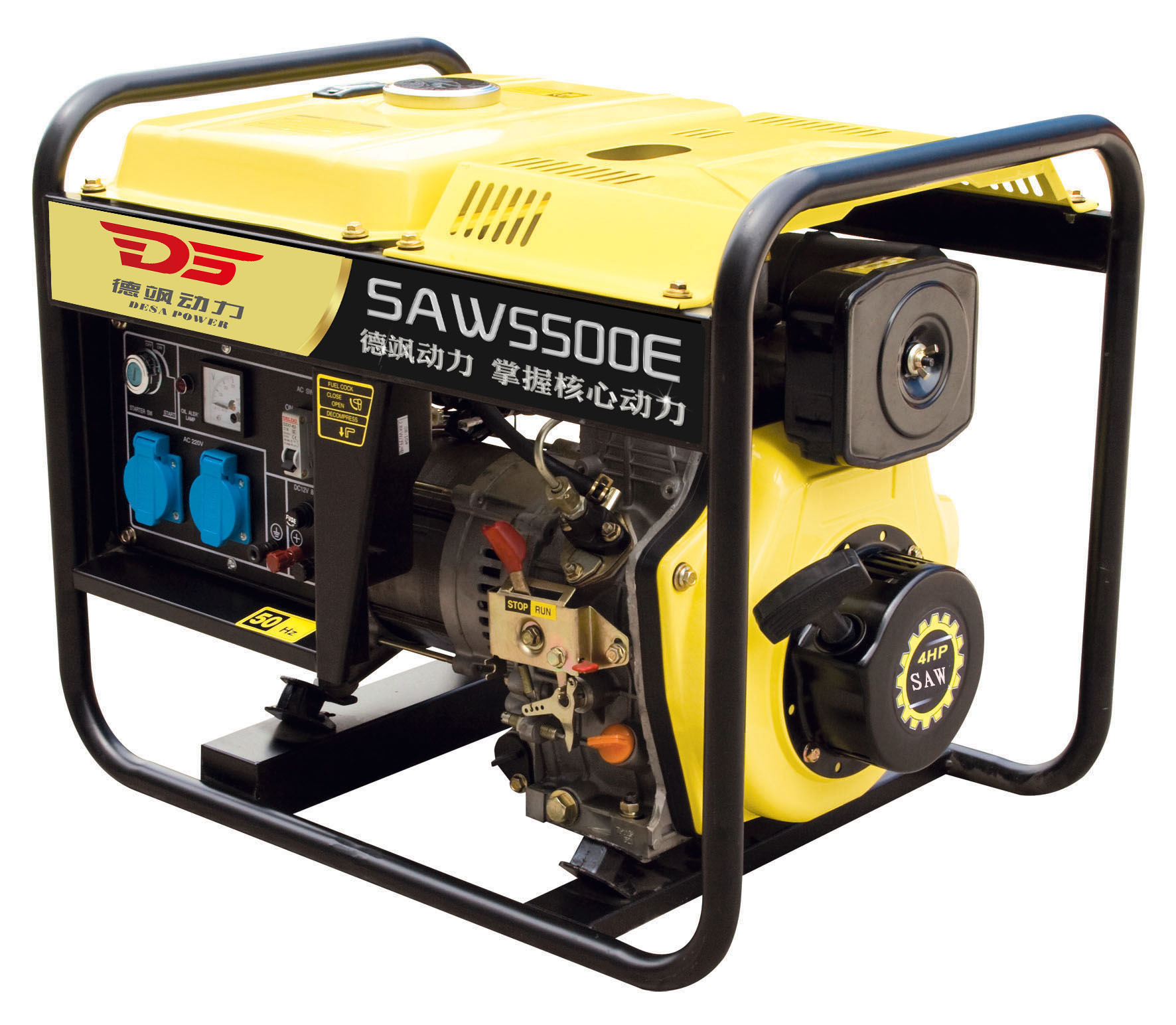

5KW metal generator with wheels

  • 产品名称:5KW metal generator with wheels
  • 客服QQ:1976808178
  • 咨询电话: 0086-17701792145
  • 电子邮箱: saweidongli_liu@sina.com
  • 发布时间: 2024-06-27 10:21:55
  • 在线留言


Model SAW5500E
Frequency (HZ) 50 60
Max. output (KW) 5 5.5
Rated output (KW) 4.6 5
Rated. AC voltage (V) 110, 220, 230, 240
Power factor (cos¢) 1
DC output (V) 12V/8.3A
Phase Single phase
Alternator type Self-excited, 2-pole, single phase alternator
Starting system Recoil or Electric
Noise level at 7m (Dba) 80-85
Fuel tank capacity (L) 12.5
Continuous work (hr) 6.5 6
Model SAW186FA
Engine type single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore×stroke (mm) 86×72
Fuel 0# or -10# light diesel fuel
Lubrication oil volume (L) 1.65
Combustion system Direct Injection
Voltmeter yes
AC Output Socket 2
Ac circuit breaker yes
Oil warning light yes
Oil alert yes
DC circuit breaker yes
Calculagraph Optional
30AH battery Optional
Big wheel Optional
Three phase voltage Optional
Current meter Optional
ATS Optional
Remote control Optional
Welding Optional
Dimension (L×W×H)(mm) 755*520*625
Net weight (kg) 104
20FT 102
