Air-cooled Diesel Generator

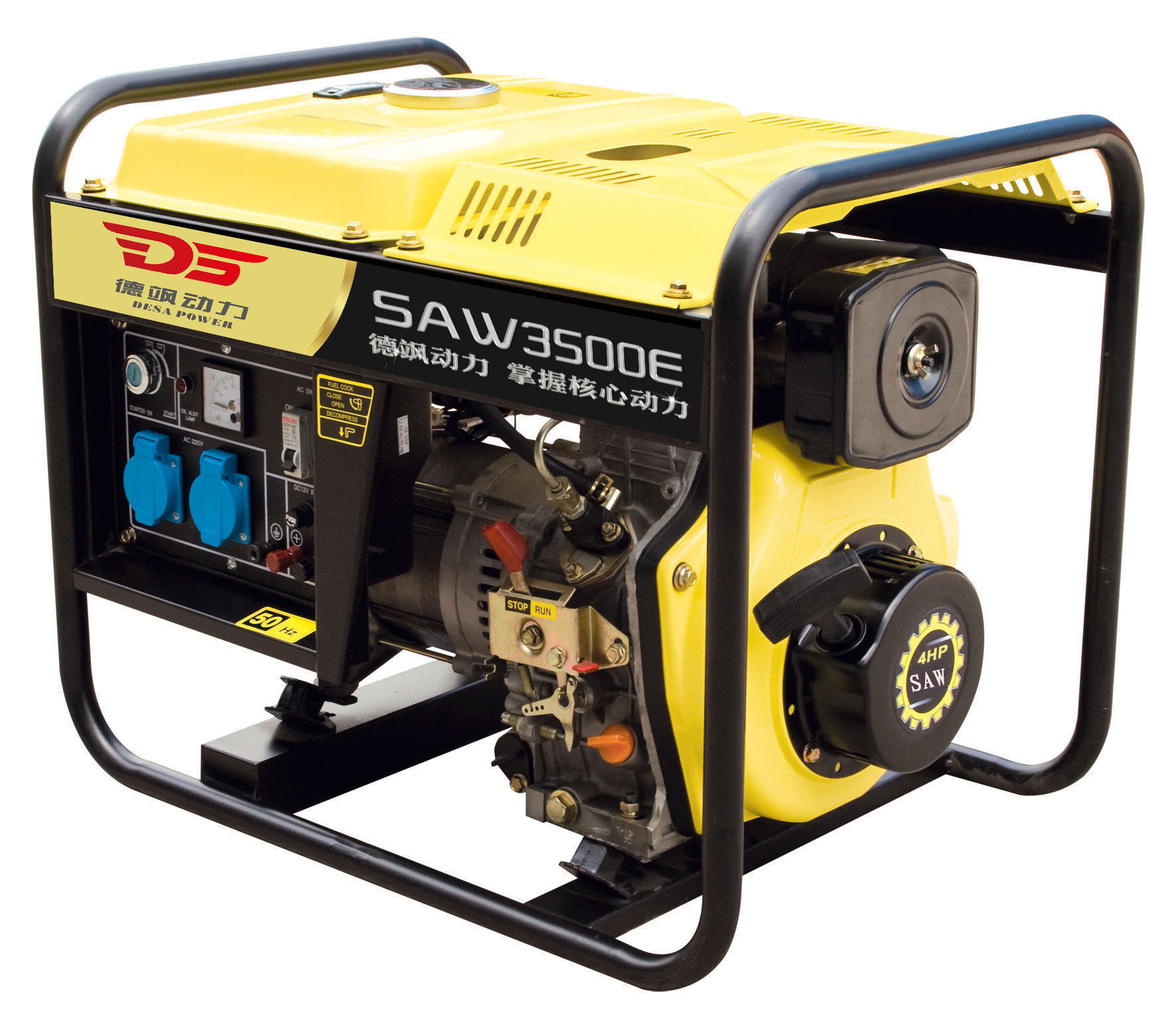

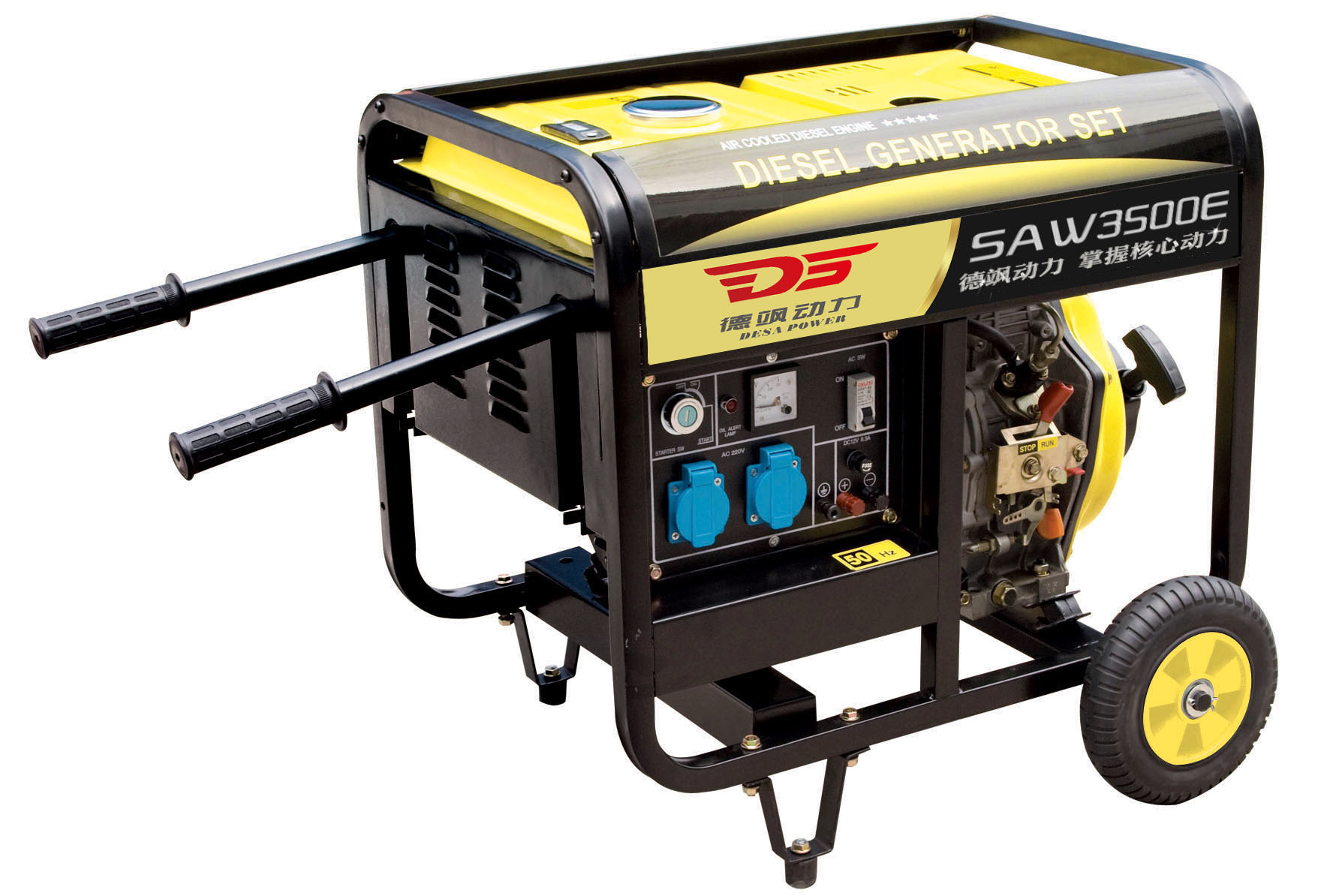

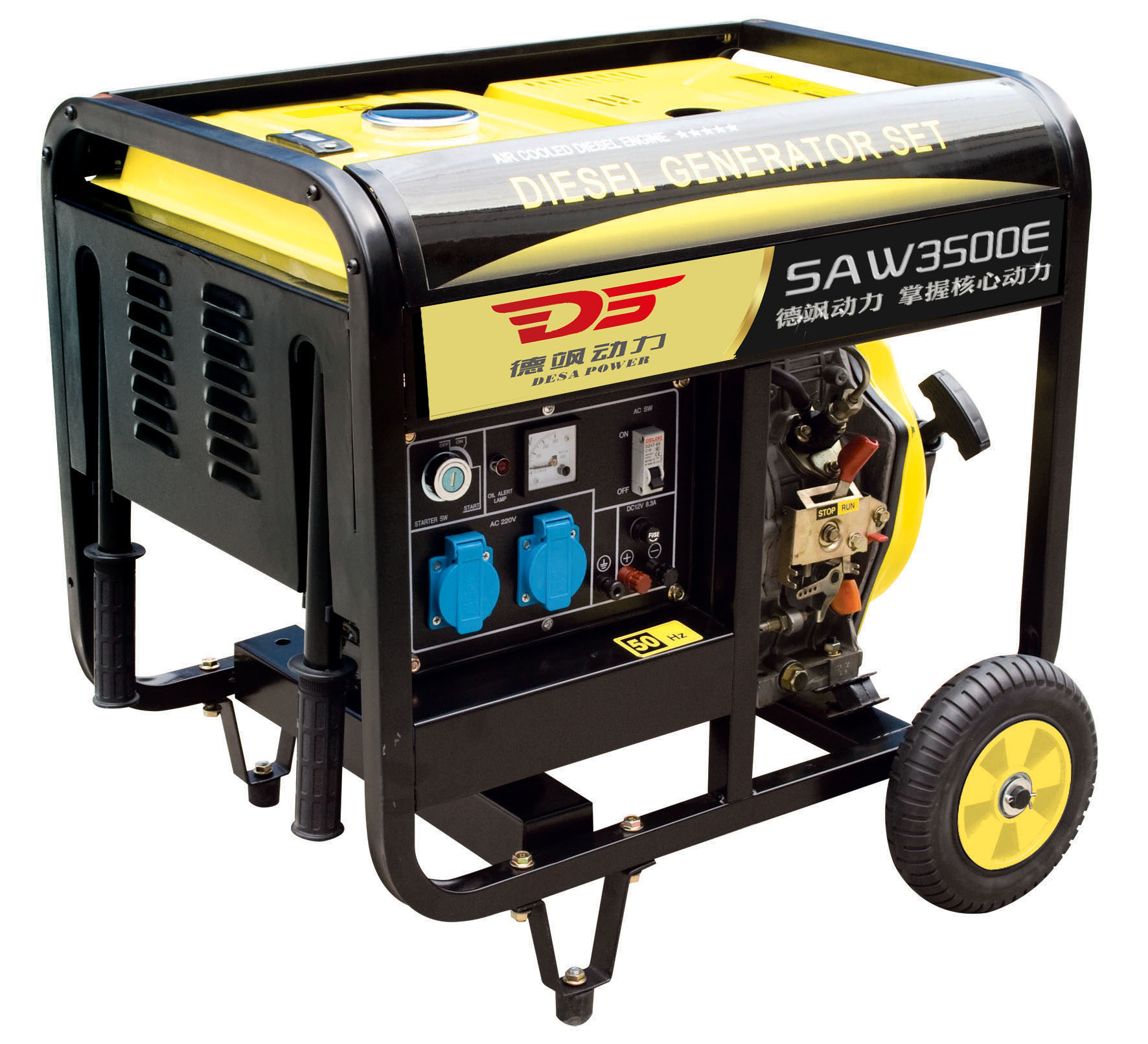

3.3kva single phase diesel generator,open frame generator

Model	SAW3500/SAW3500E
Frequency (HZ)	50	60
Max. output (KW)	3.3	3.5
Rated output (KW)	3	3.3
Rated. AC voltage (V)	110, 220, 230, 240
Power factor (cos￠)	1
DC output (V)	12V/8.3A
Phase	Single phase
Alternator type	Self-excited, 2-pole, single phase alternator
Starting system	Recoil or Electric
Noise level at 7m (Dba)	80-85
Fuel tank capacity (L)	12.5
Continuous work (hr)	9.2	8.5
Model	SAW178FA
Engine type	single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore×stroke (mm)	78×64
Fuel	0# or -10# light diesel fuel
Lubrication oil volume (L)	1.1
Combustion system	Direct Injection
Voltmeter	yes
AC Output Socket	2
Ac circuit breaker	yes
Oil warning light	yes
Oil alert	yes
DC circuit breaker	yes
Calculagraph	Optional
Three phase voltage	Optional
Current meter	Optional
ATS	Optional
Remote control	Optional
Welding	no
Dimension (L×W×H) (mm)	700480570
Net weight (kg)	69
20FT	130
