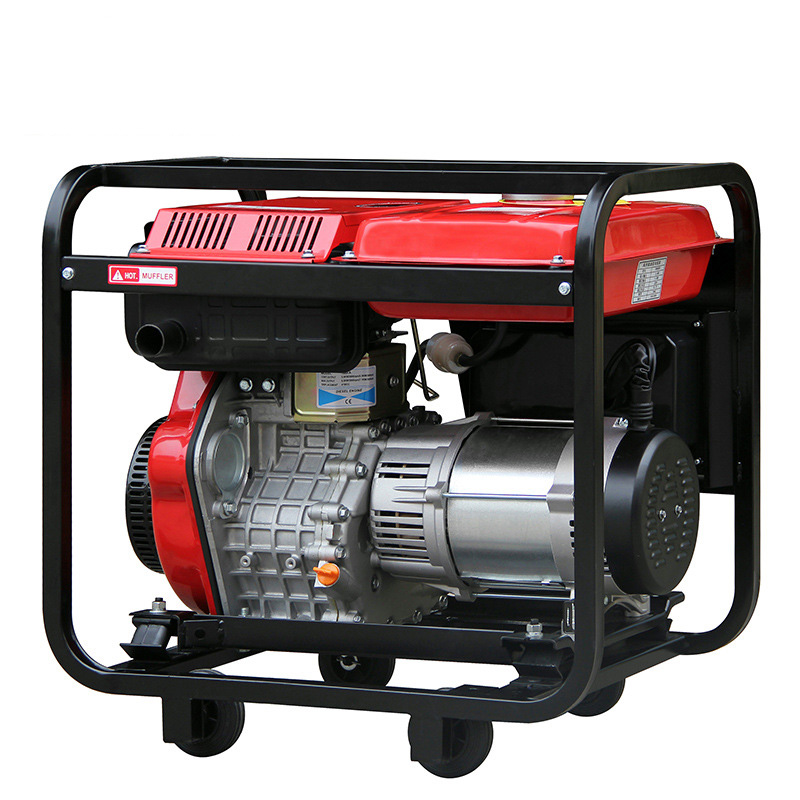

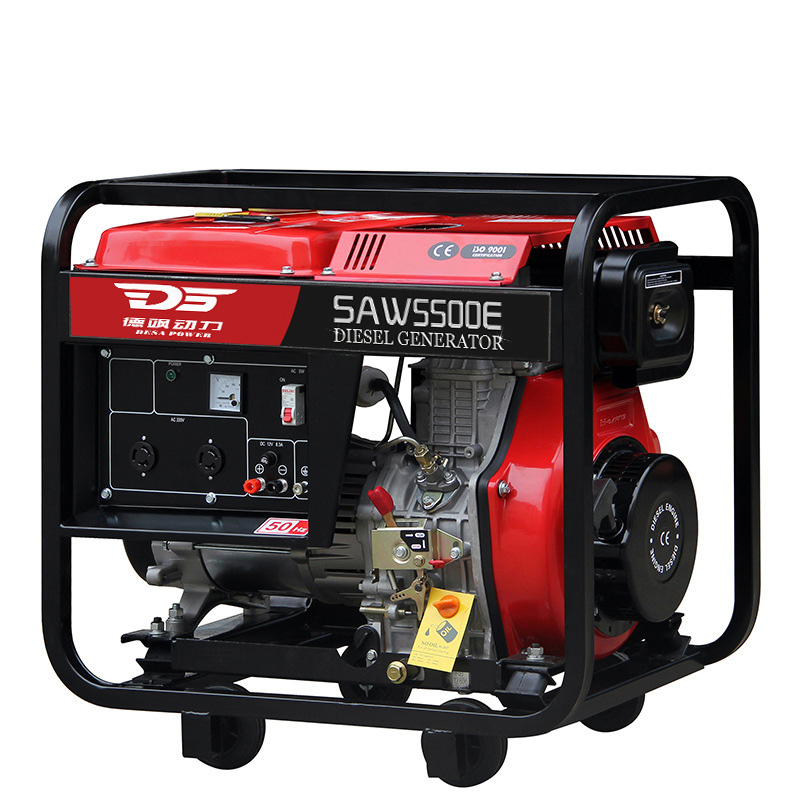

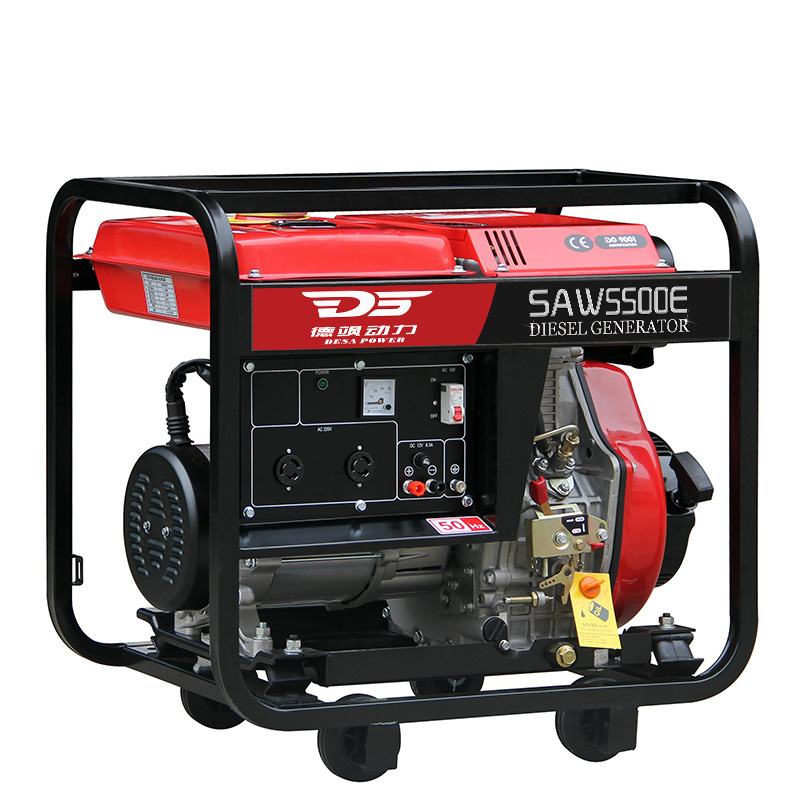

Air-cooled Diesel Generator

Small portable 5KW diesel generator

Model	SAW5500E
Frequency (HZ)	50	60
Max. output (KW)	5	5.5
Rated output (KW)	4.6	5
Rated. AC voltage (V)	110, 220, 230, 240
Power factor (cos￠)	1
DC output (V)	12V/8.3A
Phase	Single phase
Alternator type	Self-excited, 2-pole, single phase alternator
Starting system	Recoil or Electric
Noise level at 7m (Dba)	80-85
Fuel tank capacity (L)	12.5
Continuous work (hr)	6.5	6
Model	SAW186FA
Engine type	single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore×stroke (mm)	86×72
Fuel	0# or -10# light diesel fuel
Lubrication oil volume (L)	1.65
Combustion system	Direct Injection
Voltmeter	yes
AC Output Socket	2
Ac circuit breaker	yes
Oil warning light	yes
Oil alert	yes
DC circuit breaker	yes
Calculagraph	Optional
30AH battery	Optional
Big wheel	Optional
Three phase voltage	Optional
Current meter	Optional
ATS	Optional
Remote control	Optional
Welding	Optional
Dimension (L×W×H)(mm)	755520625
Net weight (kg)	104
20FT	102
