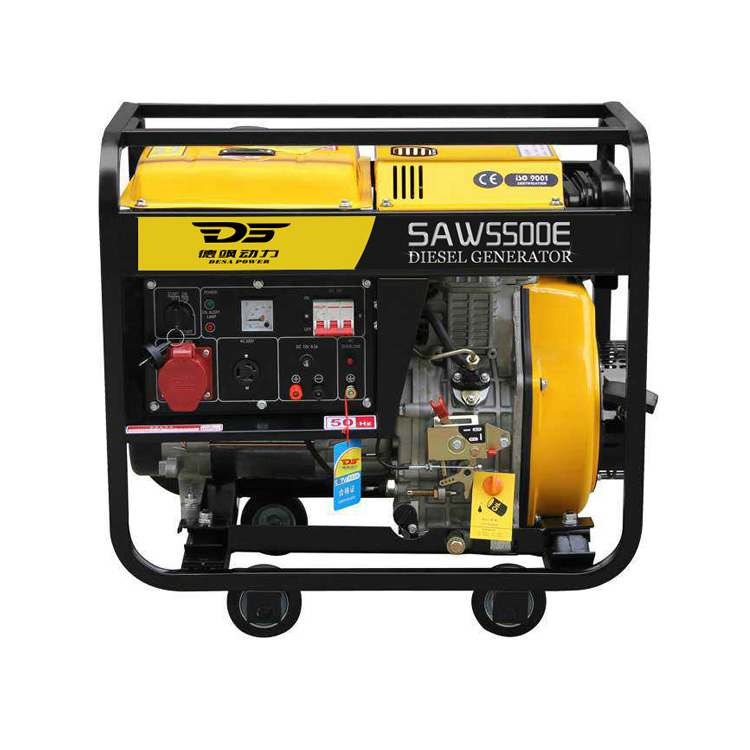

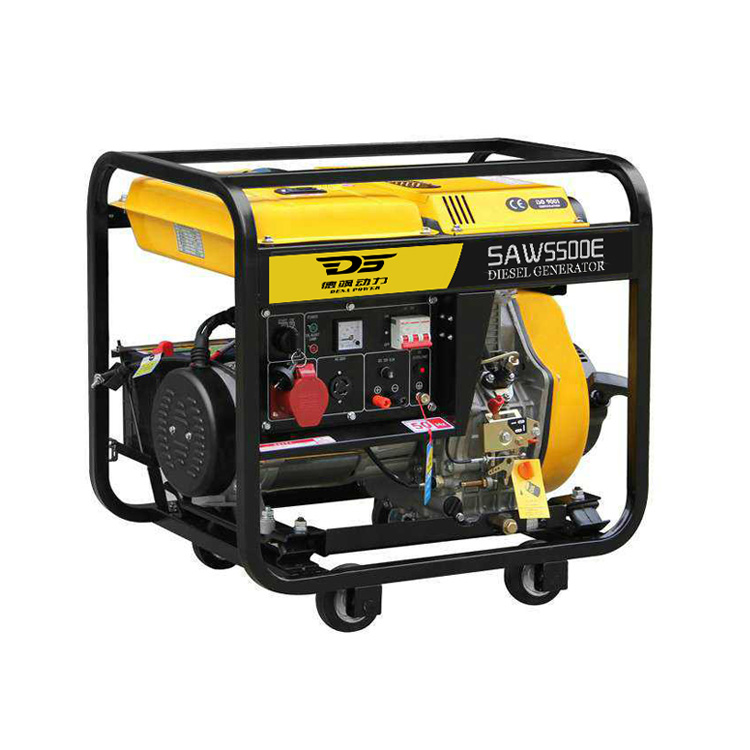

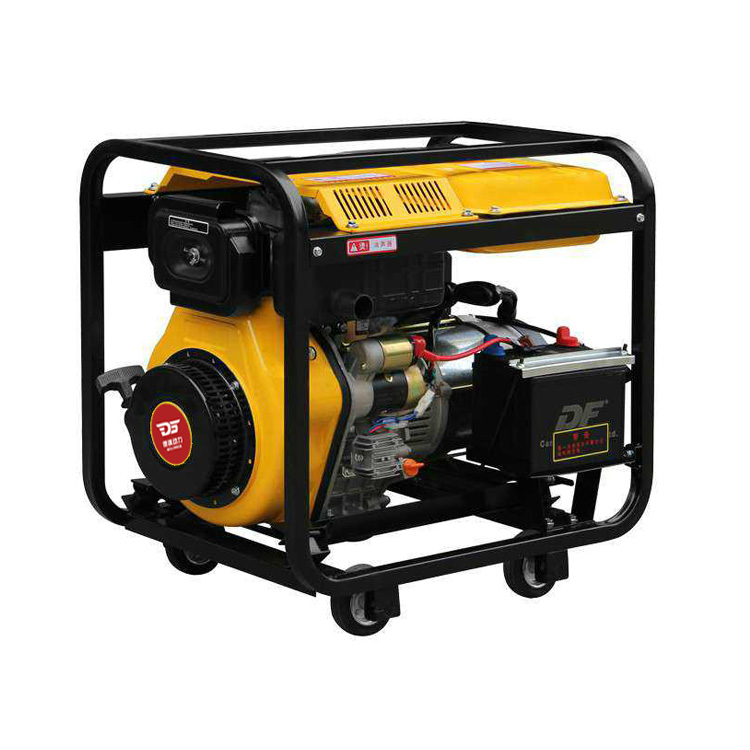

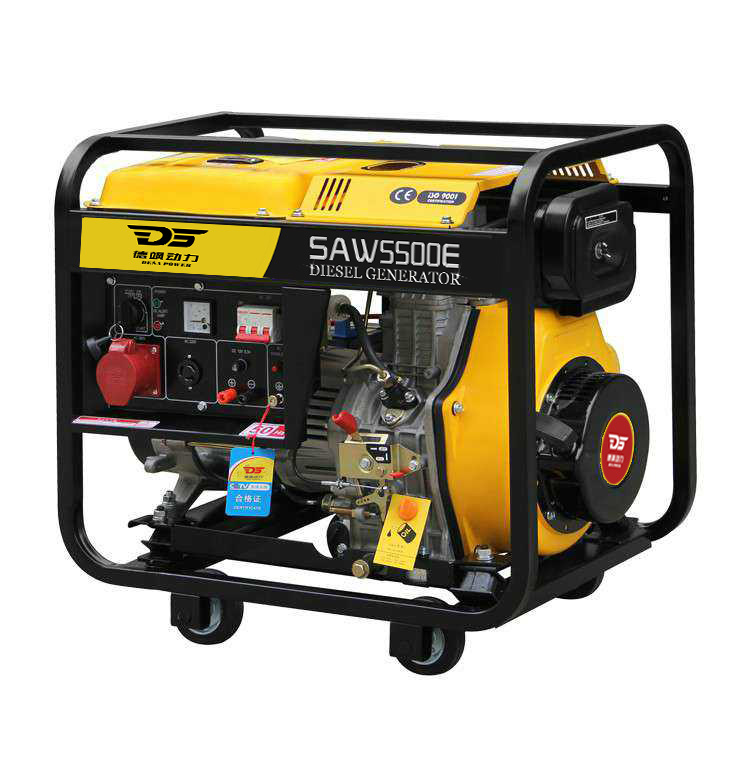

| Model | SAW5500E | |
| Frequency(HZ) | 50 | 60 |
| Max. output(kw) | 5.5 | 6 |
| Rated output(kw) | 5 | 5.5 |
| Rated. AC voltage(v) | 120, 220, 230, 240,380,400,415 | |
| Power factor(cos桅 ) | cos* =1 | |
| DC output (v) | 12V/8.3A | |
| Phase | Single phase/ three phase | |
| Alternator type | self-excited, 2-pole, single phase alternator | |
| Starting system | Electric | |
| Operating noise level(at 7m) | 80~85 | |
| Fuel tank capacity(L) | 12.5 | |
| Continues work(hr) | 6 | 5.5 |
| Model | SAW188FB | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | |
| Bore脳 stroke(mm) | 88*75 | |
| Fuel | 0# or -10# light diesel fuel | |
| Lubrication oil volume(L) | 1.65 | |
| Combustion system | Direct lnjection | |
| Voltmeter | yes | |
| AC Output Socket | 2 | |
| AC circuit breaker | yes | |
| Oil warning light | yes | |
| Oil alert | yes | |
| DC circuit breaker | optional | |
| Calculagraph | optional | |
| Big Wheel | optional | |
| Three phase voltage | optional | |
| Current meter | optional | |
| ATS | optional | |
| Remote control | optional | |
| Welding | optional | |
| Dimension(L脳 W脳 H)(mm) | 755*520*630 | |
| Net weight(kg) | 118 | |
| 20FT | 124 | |
